Our technology comes into play where standard solutions are not enough, always in close consultation with you. For special ventilation and heating tasks we develop heat exchangers that fit your building conditions and process requirements exactly.
Special heat exchangers as air coolers and air heaters
- Special versions for air handling systems of any size
- Designed for high temperature ranges or aggressive media
- Wide range of material combinations: stainless steel, aluminium, coated versions
- Optionally with droplet separator, drip tray or integrated control technology

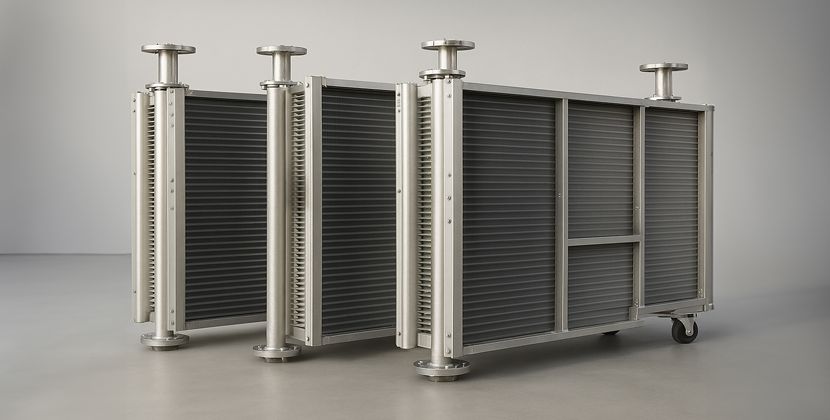

Special heat exchangers for special requirements
Our tailor-made special heat exchangers are developed in close cooperation with our customers, for high efficiency under special operating conditions.
- As air cooler or air heater
- Gas-tight and fully welded
- Materials: titanium, Hastelloy, stainless steel
- For sewage sludge drying, biogas condensation and aggressive media

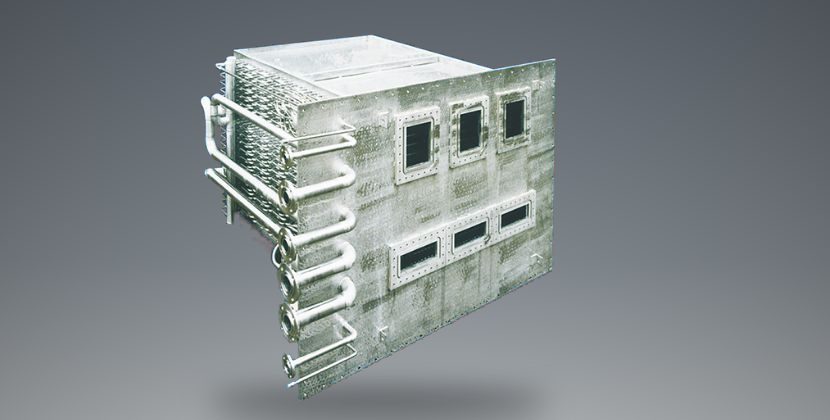

Air and vapour condensation with aggressive media
Our direct expansion evaporators for air and vapour condensation are designed for aggressive media, for example petrol vapour recovery or dichlorotoluene condensation.
- Made entirely of stainless steel for maximum corrosion resistance
- Multi-circuit version with cascades for R23 / R404A
- Integrated glycol water circuit for safe defrosting
- Robust design for demanding industrial processes

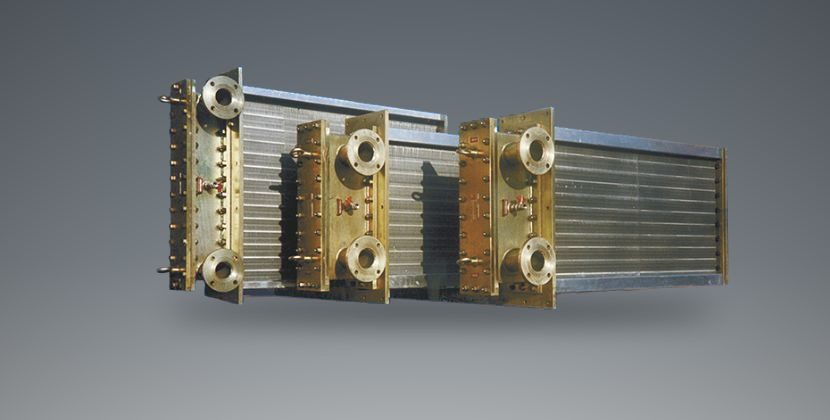

Heat exchangers for special process cooling
For demanding industrial processes we develop matched heat exchangers: powerful, reliable and easy to maintain. Typical applications are the timber industry, power plant and energy engineering and chemical process cooling.
- Robust design for extreme operating conditions
- Hinged header boxes for easy cleaning of the inner tubes
- Tailor-made for high efficiency in special applications

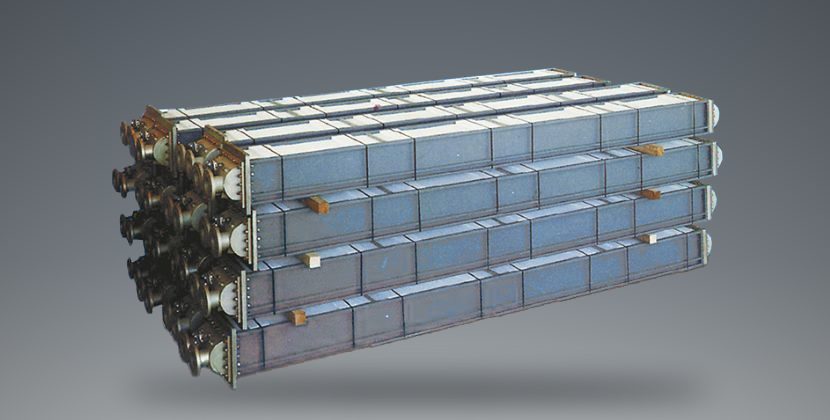

Special heat exchangers for high temperatures
Wherever extreme temperatures prevail, our heat exchangers made of highly heat-resistant steels work reliably, durably and efficiently.
- Industrial process heat
- Waste heat systems
- Thermal oil and hot gas applications
Examples of our custom builds

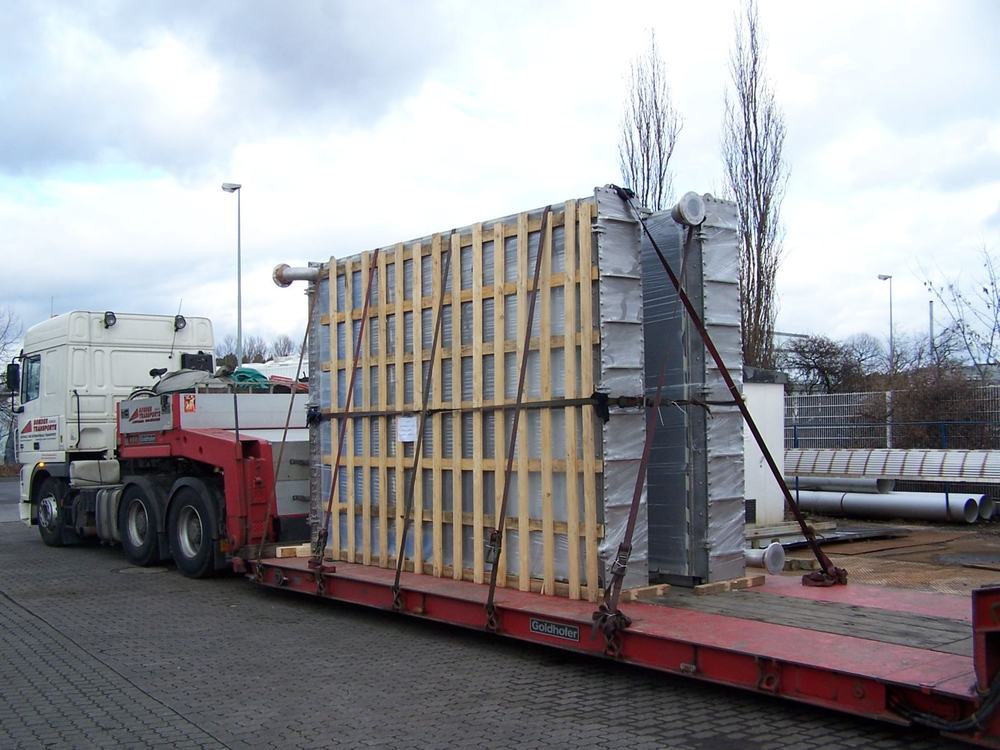

Biogas condenser in a gas-tight casing
Designed as evaporator and reheater.

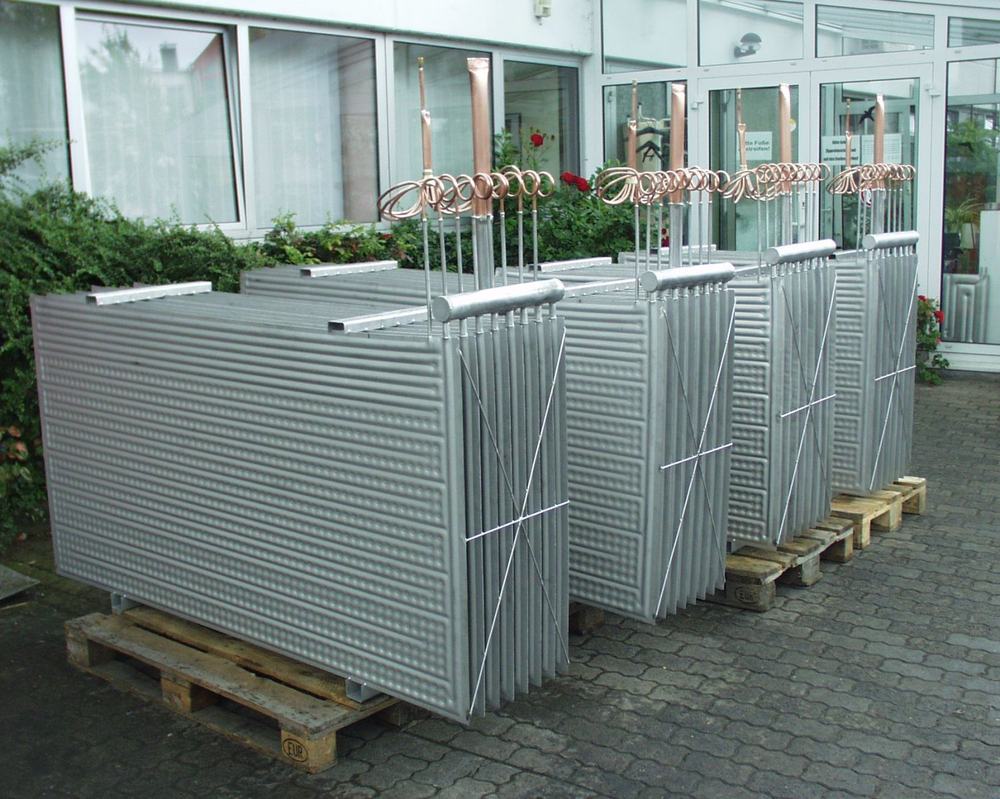

Plate heat exchanger for brine bath cooling
Plate system as direct expansion evaporator.

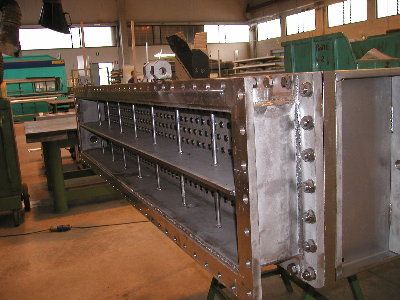

Air cooler with removable header boxes
In stainless steel 1.4301, 1.4404 or 254 SMO. For the timber industry also as a high-performance run-around coil system with header boxes for cleaning.
Our products meet the requirements of the Pressure Equipment Directive 2014/68/EU.Interested in this solution?
We design every heat exchanger to your operating data. Call us, write to us or use the matching enquiry form.
